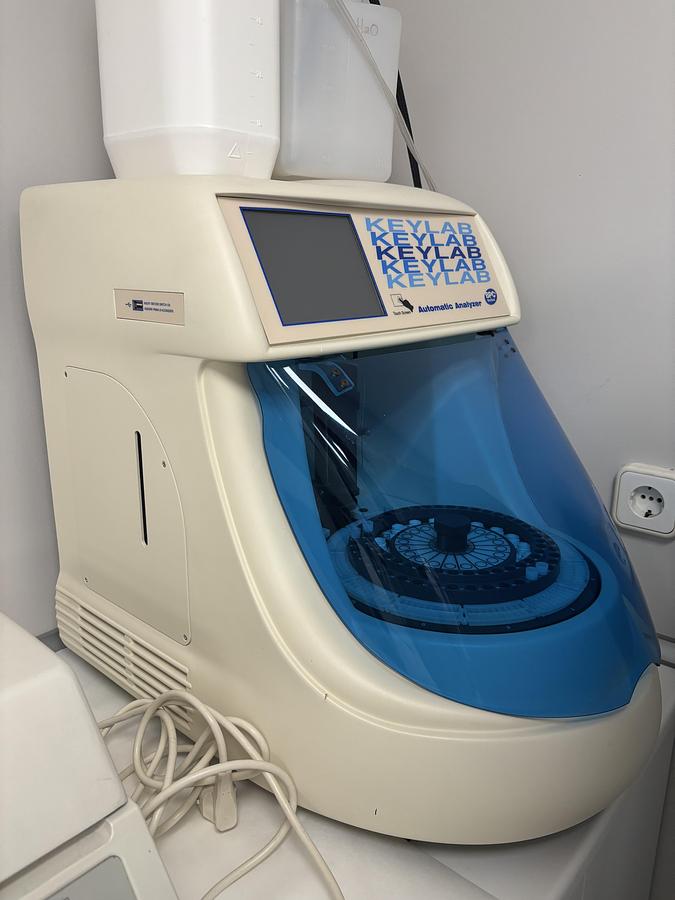

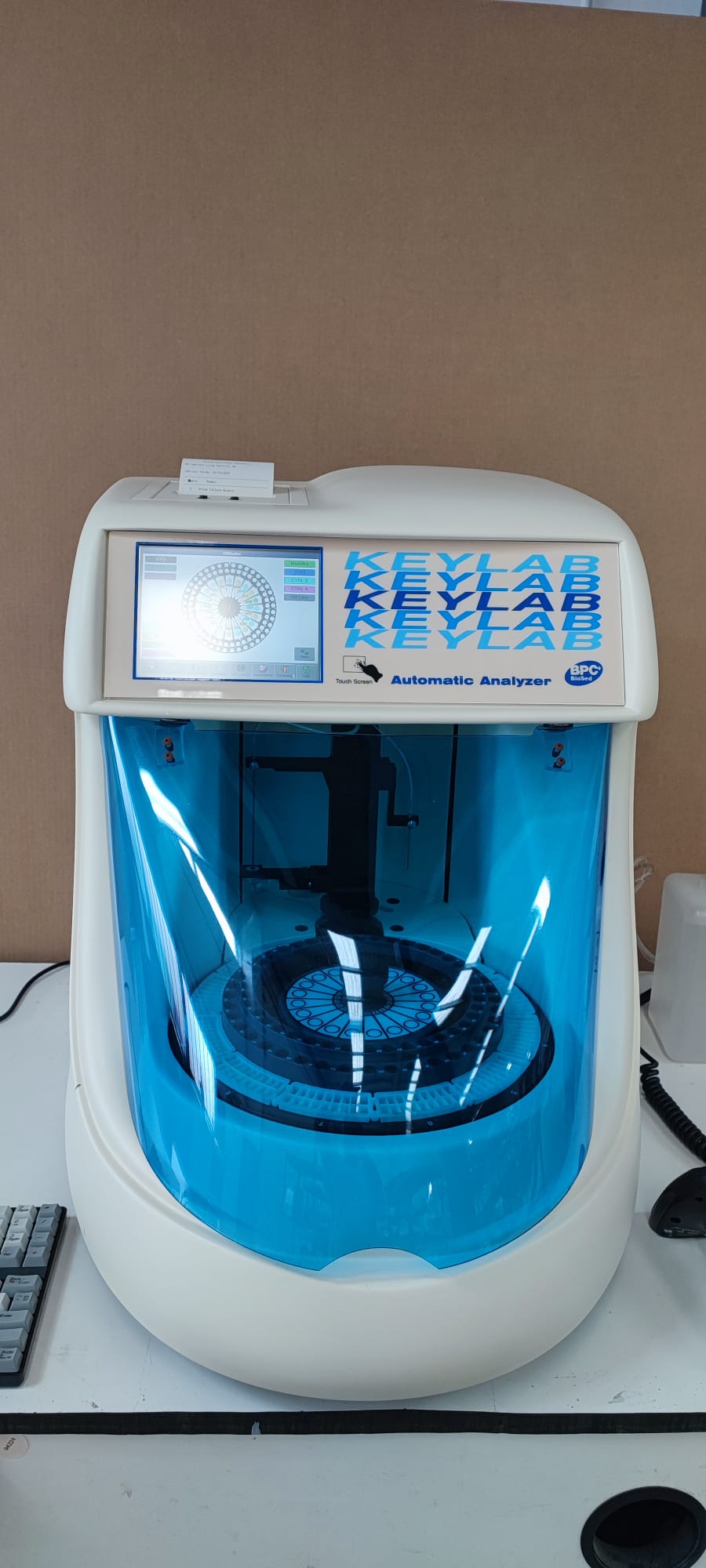

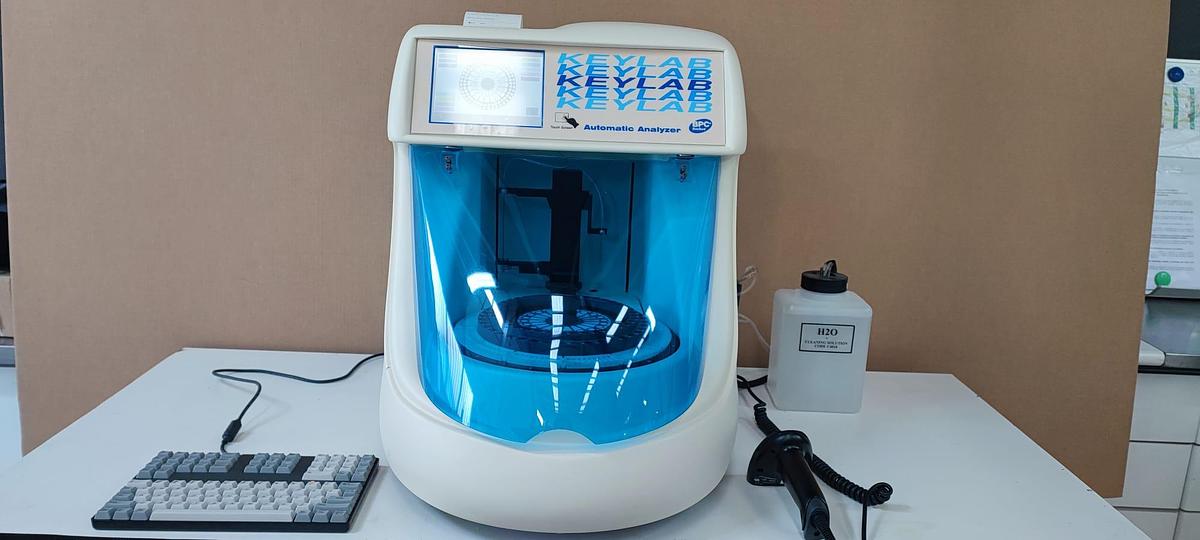

KeyLab compact chemistry analyzer

🔹 Key Features

• Random Access Operation – run samples by profile, patient by patient, or STAT loading
• Walk-Away Automation – frees up technician time
• Open System – up to 40 programmable methods for both Clinical Chemistry & Immunoassays
• Turbidimetric Capability – expanded test flexibility
• Advanced Calculations – End Point, Kinetic, Initial Rate, Bichromatic, Differential, Serum Blank
• Comprehensive Patient Management – up to 40 tests per patient file
• Flexible Reporting – alphanumerical results, test-by-test or patient-by-patient

🔹 Intelligent Sampling & Processing

• SIP & DIP sampling system with automatic probe washing
• Automatic & Predilution Functions – accurate results even with pathological samples
• Multipoint Calibration – 2 to 6 calibrators for precision
• Supports up to 3 reagents/test for complex protocols
• Removable Reagent Carousel – convenience and flexibility

🔹 High-Performance Optics

• Pre-aligned Halogen Long-Life Lamp – stable, reliable light source
• Interference Filters: 340, 405, 505, 546, 570, 620 nm (+1 free position)
• High Accuracy: better than 1%
• Resolution: 0.0001 Abs
• Temperature Controlled Flow Cell (50 µL) – maintained at 37°C ±0.1°C via Peltier

🔹 Throughput & Capacity

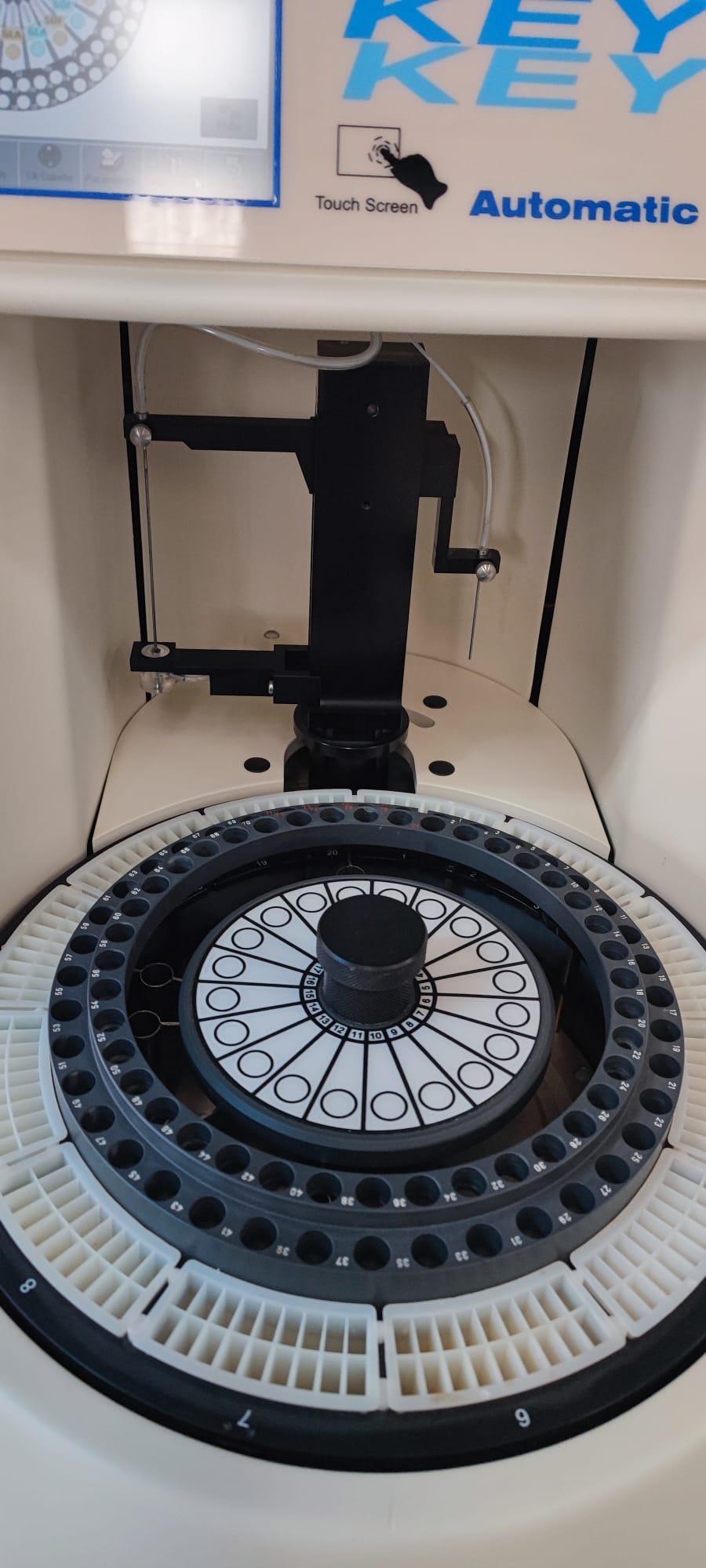

• Sample Tray: 70 positions (secondary cups)
• Reagent Tray: 20 reagents online
• Reaction Wells: 216 (up to 196 simultaneous reactions)
• Max Throughput: up to 120 tests/hour

🔹 User-Friendly Interface

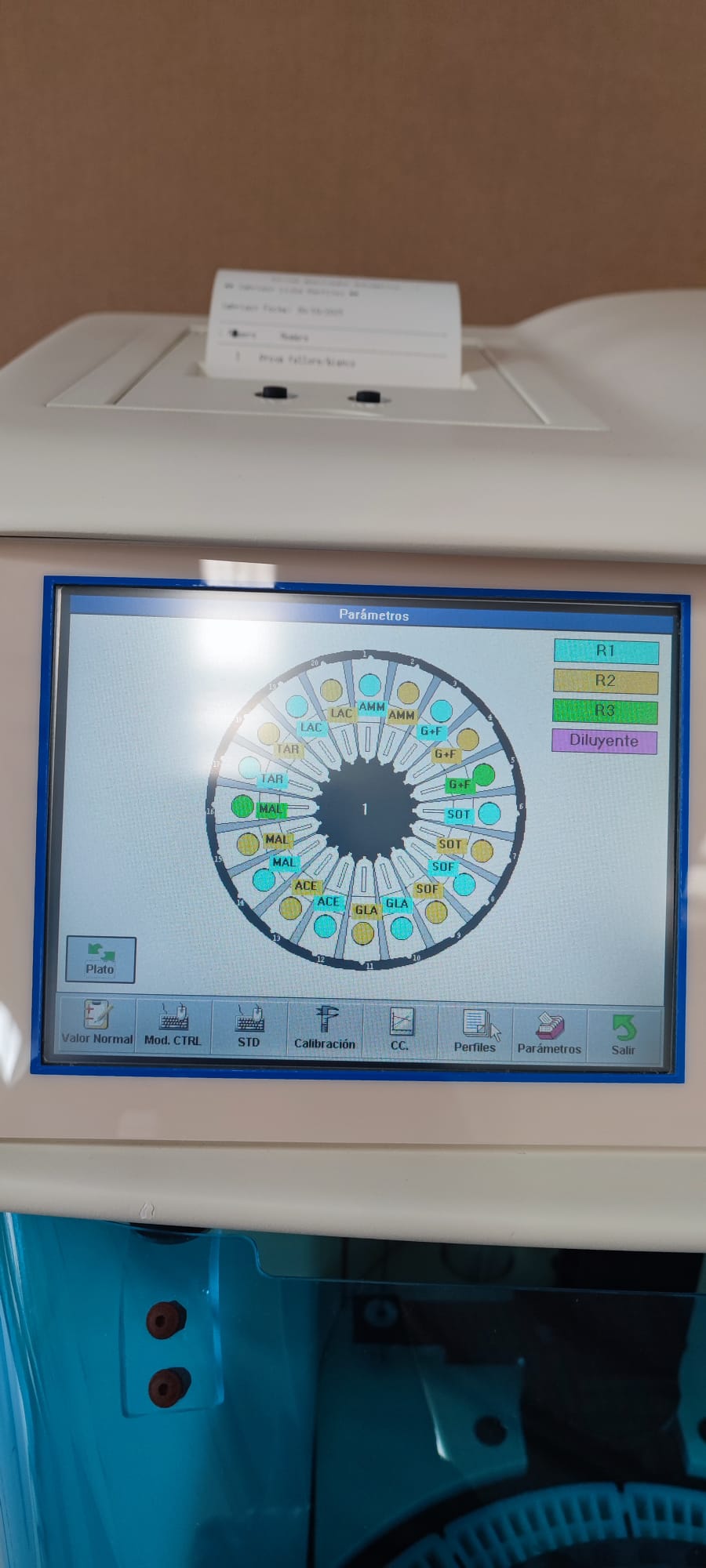

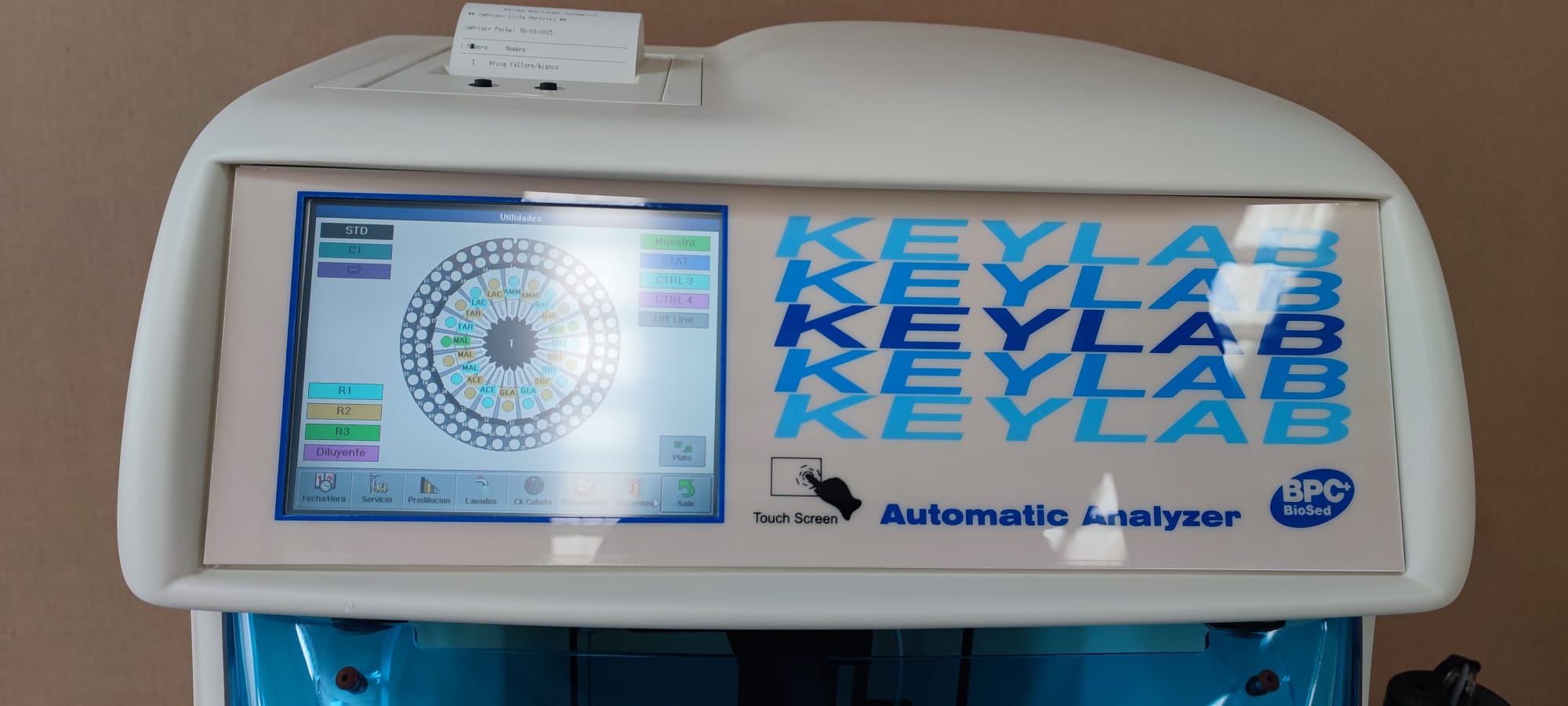

• 6.4” Color LCD Display – intuitive navigation

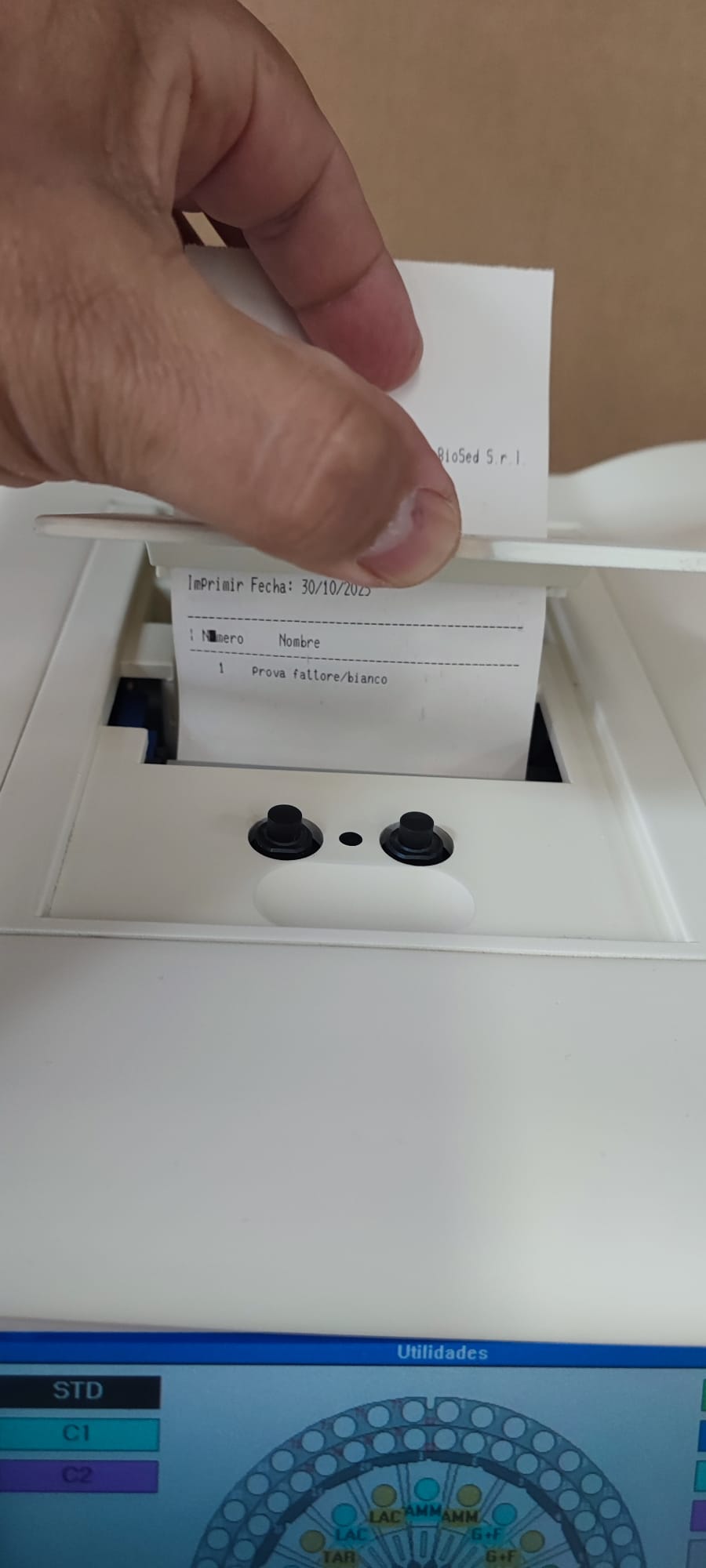

• Built-in Thermal Printer – fast and reliable reporting
• Optional Accessories: external color monitor, printer, keyboard
• Data Management: floppy disk archive for patients & methods

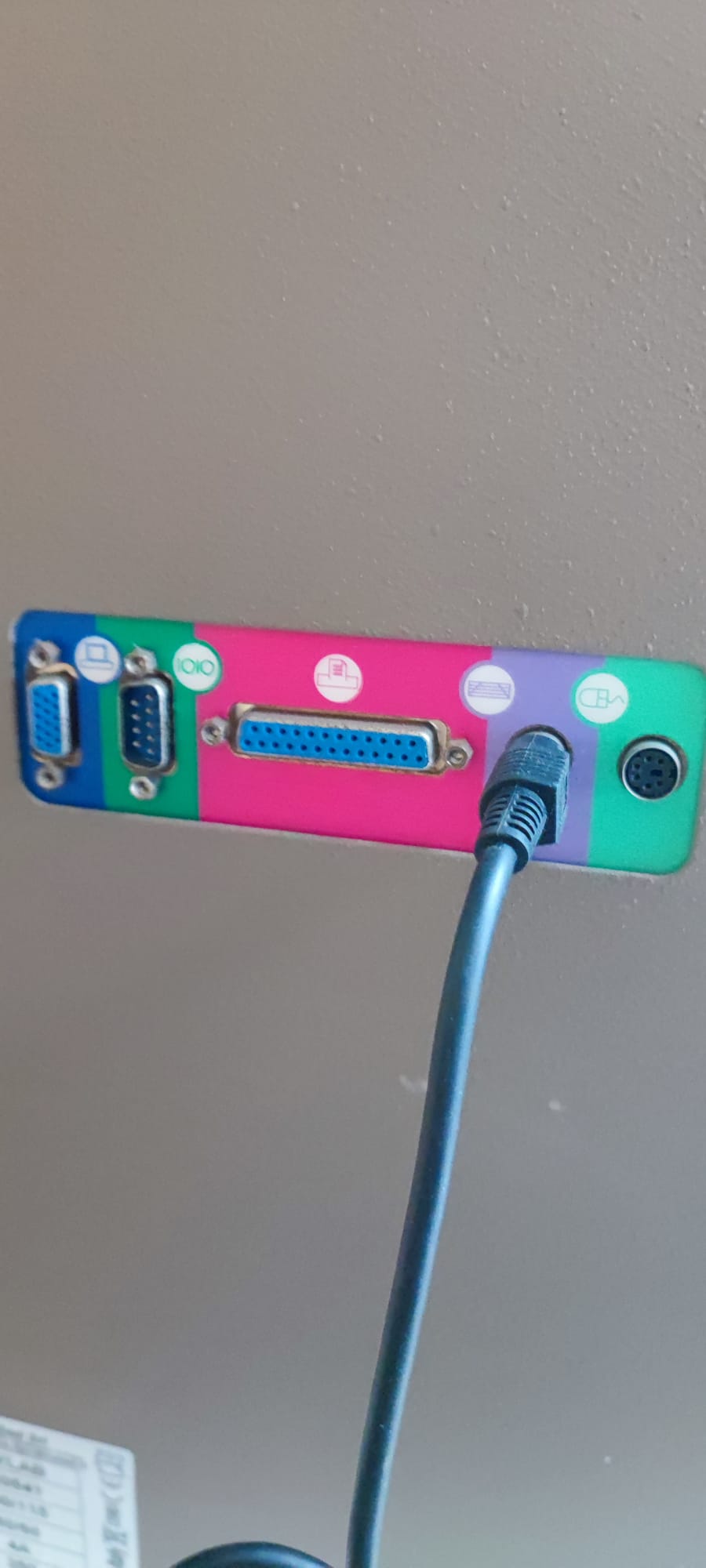

• Connectivity: RS232C bidirectional host link, Parallel port for external printer
• OS: Windows-based

🔹 Technical Specifications

• Measuring Range: 0 – 2.5 Abs
• Carryover: 1% (with 500 µL reaction volume)
• Dimensions: 58 (W) × 60 (D) × 73 (H) cm
• Power Supply: 115/230/240 V AC, 50/60 Hz, 350 W

✅ Benefits for Your Laboratory

• Save technician time with walk-away automation
• Ensure accuracy & reliability with multipoint calibration and temperature stability
• Adapt easily with open system design for chemistry and immunoassay methods
• Increase workflow efficiency with up to 120 tests/hour throughput
